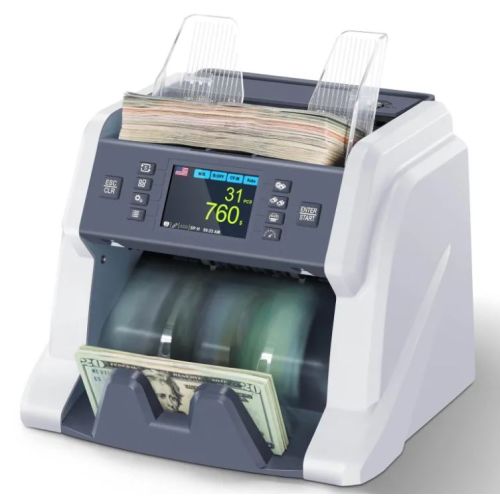

Ribao BC-40 High Speed UV Money Counting Machine

Specifications

• Hopper Capacity: 600pcs
• Stacker Capacity: 200pcs
• Currency Support Capacity: 4 currencies
• Display: Color TFT-LCD (3.5 inch),Touch Screen
• Suitable Note Size: Length: 100mm~175mm, Width: 50mm~90mm
• Suitable Note Thickness: 0.05mm~0.12mm
• Speed (pcs / min): 800,1000,1200 (SDC & MIX mode), 1500(CNT mode)

Counting Modes

• Piece counting (CNT)
• Value counting?SDC, MIX
• Auto recognition
• Multi-currency mix counting
• Batch (5-200)
• Accumulation

Counterfeit Detection

• Ultraviolet detection(UV)
• Magnetism detection(MG)
• Metal thread detection(MT)
• Infrared image detection(IR)
• CIS image detection(one side)

Connectivity

• USB for data collection and software upgrade
• RS232 for PC communication
• RJ 12 for external display

Dimensions:

• Machine Dimensions(WxDxH): 287(H)x240(W)x232(D)mm
• Net Weight: 5.9kg

Features

Compact

It is portable and takes up less space for cashiers.

Accurate Counting

Excellent performance counting both brand new and worn out notes.

TFT Screen

A 3.5 inch TFT touch screen allows for greater visibility.

Multi–currency Capability

Support 4 currencies USD+EURO+GBP+LOCAL

Reliable Counterfeit Detection

Single CIS provide R\B\G\IR images for detection. It can detect the notes by UV, MG, MT, IR, CIS
